三个机型 | 功率 | 巡航速度 | 升限 | 续航 |
virus SW80 | 80hp | 133ktas | 18,000ft | 890nm |
virus SW100 | 100hp | 147ktas | 18,000ft | 783nm |
virus SW100 IS | 100hp | 147ktas | 18,000ft | 852nm |
不折不扣的性能

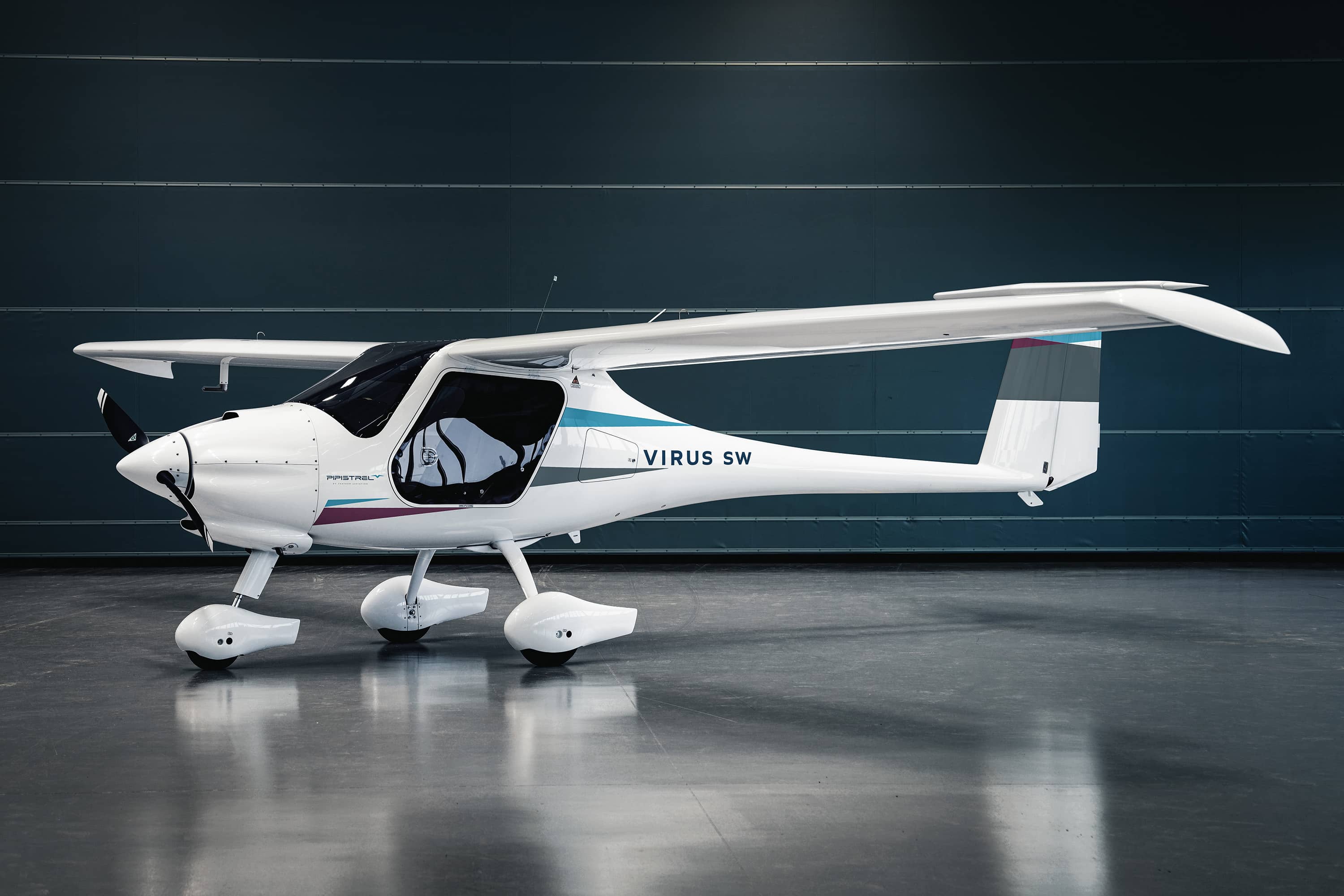

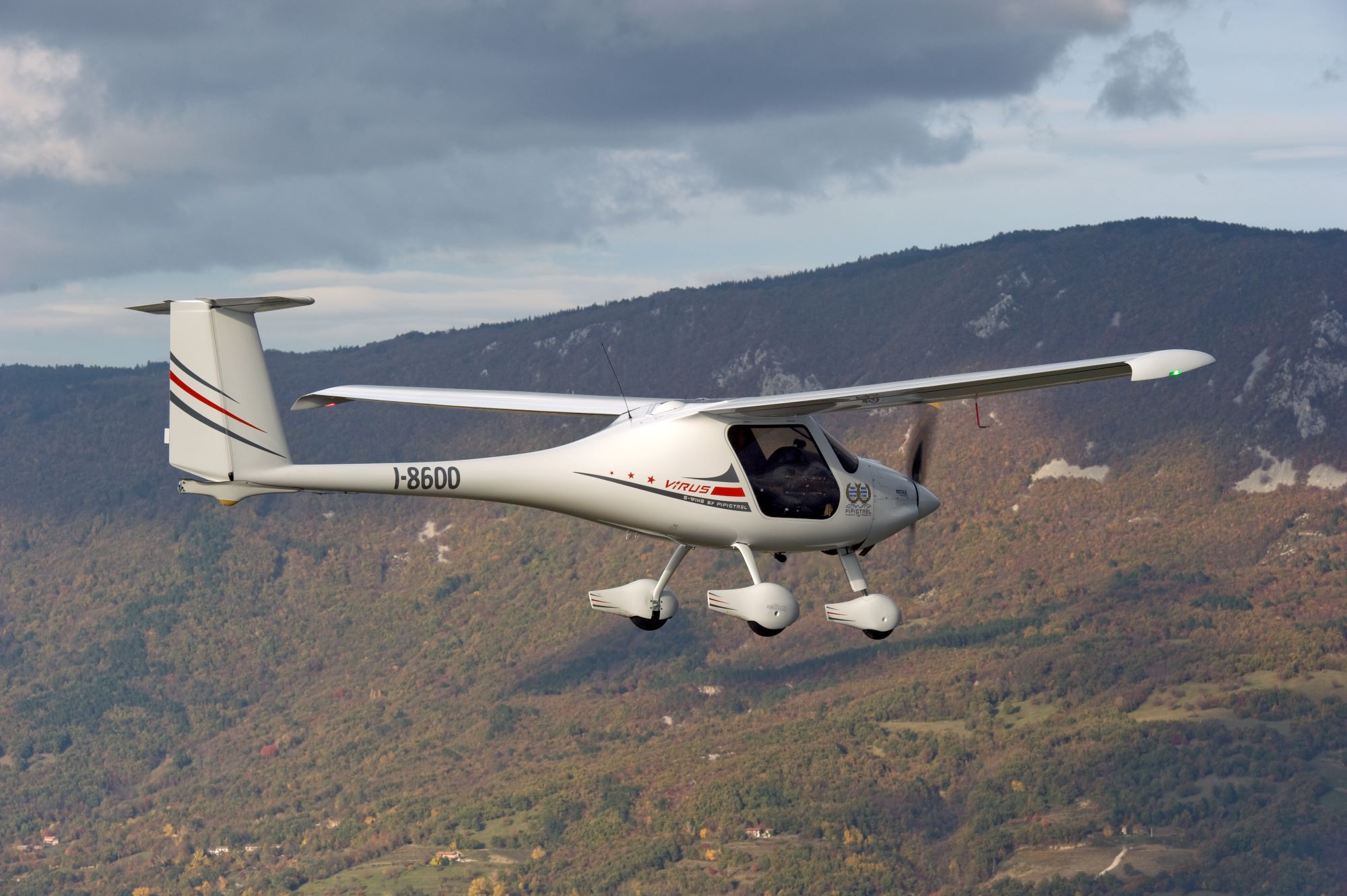

Virus SW 是一架卓越的飞机，保持着从世界各地飞往 NASA 挑战赛获胜者的多项记录。Virus SW 的优势在于能够在 15,000 英尺的高度飞行并从短跑道起飞和降落。Virus SW 可通过一系列动力装置和设备选项进行完全定制，是快速越野飞行、监视任务和高级操作的理想飞机。
Virus SW 已在全球拥有超过 1,000 架私人业主、航空专业人士、培训机构和特殊任务应用的飞机，是真正的 Pipistrel 最通用的飞机。
完全可定制

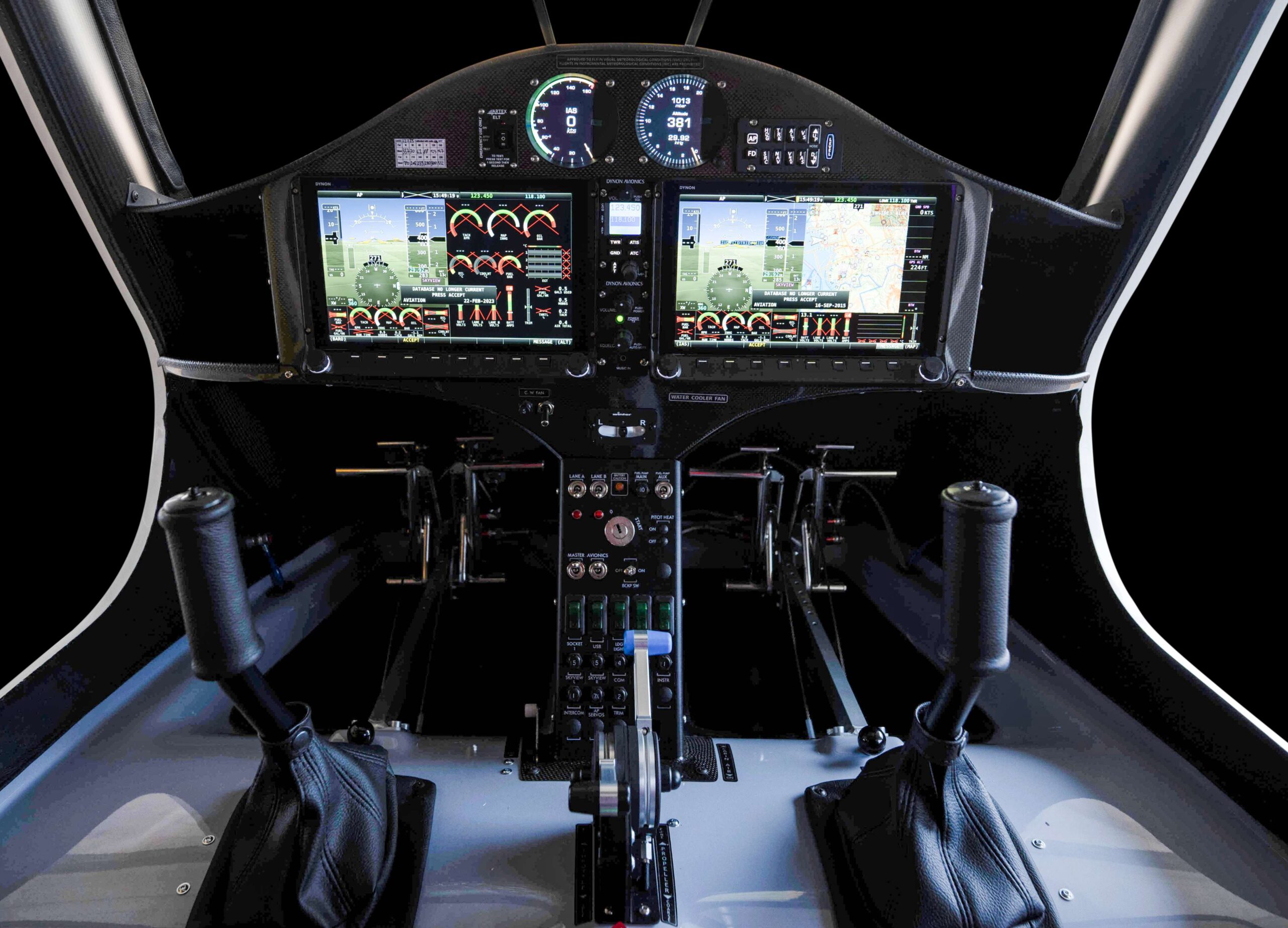

Virus SW 提供多种发动机选择，从 80 马力 Rotax 912 到 115 马力涡轮增压 Rotax 914 系列，将纯粹的速度与前所未有的燃油经济性结合在一起。大量航空电子设备选项可实现完全定制的驾驶舱体验，包括带 GPS 和集成自动驾驶仪的 IFR 级玻璃驾驶舱。
空气动力效率
凭借其卓越的空气动力学效率、最先进的复合材料结构和同类产品中最低的油耗，Virus SW 的巡航速度可达 150 节，航程接近 900 海里。Virus SW 拥有舒适安静的机舱，配备手工皮革和加固的 Kevlar 驾驶舱等高品质功能，确实是客户的最爱。
MODEL | VIRUS 912 SW 80 | VIRUS 912 SW 100 | VIRUS 912 SW 100 IS |
ENGINE ROTAX | ROTAX 912 UL | ROTAX 912 ULS | ROTAX 912 iS |
max power(with 2 carb.) | 80 hp at 5800 rpm | 100 hp at 5800 rpm | 100 hp at 5800 rpm |
PROPELLER | Variable pitch | Variable pitch | Variable pitch |
SIZES | |||
wing span | 10.71 m | 10.71 m | 10.71 m (35 ft. 1 inch) |
length | 6.5 m | 6.5 m | 6.5 m (21 ft. 3 inch) |
height | 1,85 | 1,85 | 1,85 |
wing area | 9.51 m2 | 9.51 m2 | 9.51 m2 (103ft2) |
rudder area | 1.1 m2 | 1.1 m2 | 1.1 m2 |
tail area | 1.08 m2 | 1.08 m2 | 1.08 m2 |
aspect ratio | 11,3 | 11,3 | 11,3 |
positive flaps | 9 deg. 19 deg | 9 deg. 19 deg | 9 deg. 19 deg |
negative flaps | 5 deg | 5 deg | 5 deg |
center of gravity | 25% – 37% | 25% – 37% | 25% – 37% |
WEIGHTS | |||
empty weight | 287 kg | 289 kg | 292 kg |
max take off weight (MTOW) | 472.5 kg / 600 kg | 472.5 kg / 600 kg | 472.5 kg / 600 kg |
fuel tanks capacity | 2 x 50 l | 2 x 50 l | 2 x 50 l |
useful fuel | 2 x 47 l | 2 x 47 l | 2 x 47 l |
PERFORMANCES | |||
stall with flaps | 64 km/h | 64 km/h | 64 km/h |
stall without flaps | 79 km/h | 79 km/h | 79 km/h |
cruising speed (75% power) | 246 km/h | 273 km/h | 273 km/h |
max. horizontal speed | 264 km/h | 283 km/h | 283 km/h |
VNE | 302 km/h | 302 km/h | 302 km/h |
max speed with airbrakes out | 205 km/h | 205 km/h | 205 km/h |
max speed with flaps down | 130 km/h | 130 km/h | 130 km/h |
manoeuvring speed | 174 km/h | 174 km/h | 174 km/h |
best climb speed | 140 km/h | 140 km/h | 140 km/h |
max climb rate | 6.1 m/sec | 8.4 m/sec | 8.4 m/sec |
best glide ratio speed | 118 km/h | 118 km/h | 118 km/h |
best glide | 1:17 | 1:17 | 1:17 |
take off run | 140 m | 95 m | 95 m |
take off over 15 m obstacle | 225 m | 175 m | 175 m |
service ceiling | 5486,4 m | 5486,4 m | 5486,4 m |
45°-45° roll time | 1.6 sec | 1.6 sec | 1.6 sec |
fuel consum. at cruise. speed | 13.6 l/hour | 17.8 l/hour | 15.5 l/hour |
endurance | 6.9 hours | 5.3 hours | 6.4 hours |
range distance | 1650 km | 1450 km | 1720 km |
max load factor permitted ( x1.875) | +4g -2g | +4g -2g | +4g -2g |
design safety factors & tested | minimum 1.875 | minimum 1.875 | minimum 1.875 |
